Aerogen Overview
Vibrating Mesh Technology
Scroll to review the technology below
At the heart of every Aerogen device is our unique Vibrating Mesh Technology.
This is a brief demonstration of that technology in action.

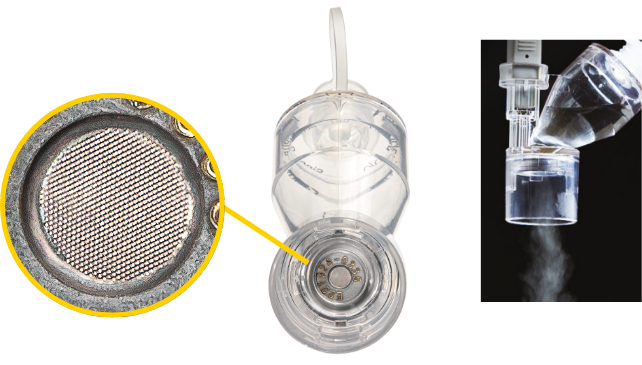

Take a closer look at the technology within the Aerogen Solo

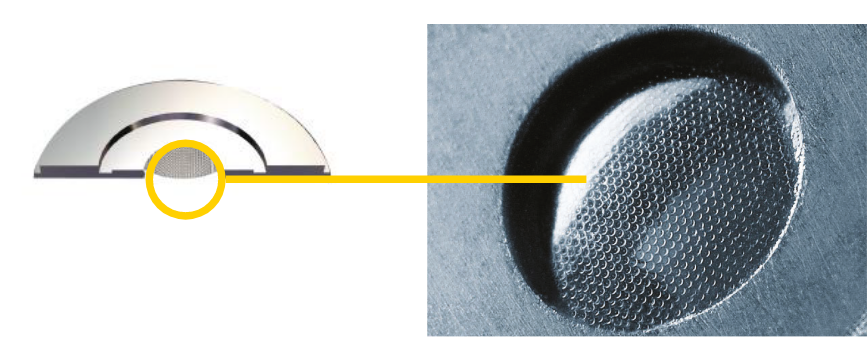

Vibrating Mesh Technology
When energy is applied, the aperture plate vibrates at 128,000 times a second1

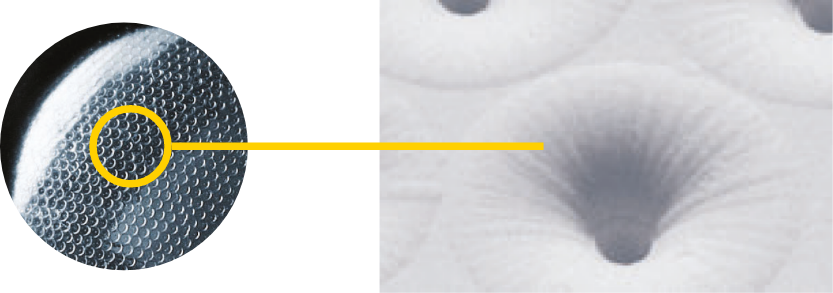

The vibrations cause each aperture to act as a micro pump, drawing liquid through the cone-shaped hole.

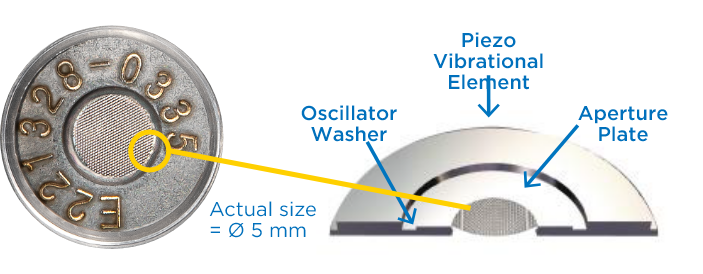

Each aperture plate is perforated with 1,000 precision formed holes across its 5mm diameter.1,2

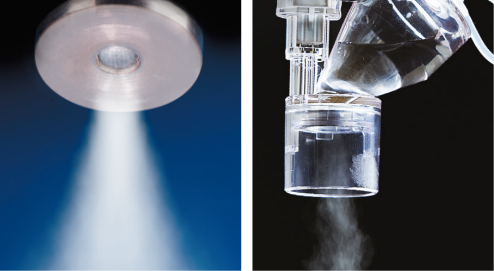

This forms a low-velocity, fine-particle, nebulised mist of consistently sized droplets.
Particle size is an ideal size of 1-5 microns to reach the small peripheral airways.1
Section Three | Vibrating Mesh Technology
