Aerogen Solo Use:
Non-Invasive Ventilation
Follow this set up guide to understand how to use Aerogen Solo for Continuous or 6 hour mode Nebulisation.
Scroll to review the steps below
STEP 1

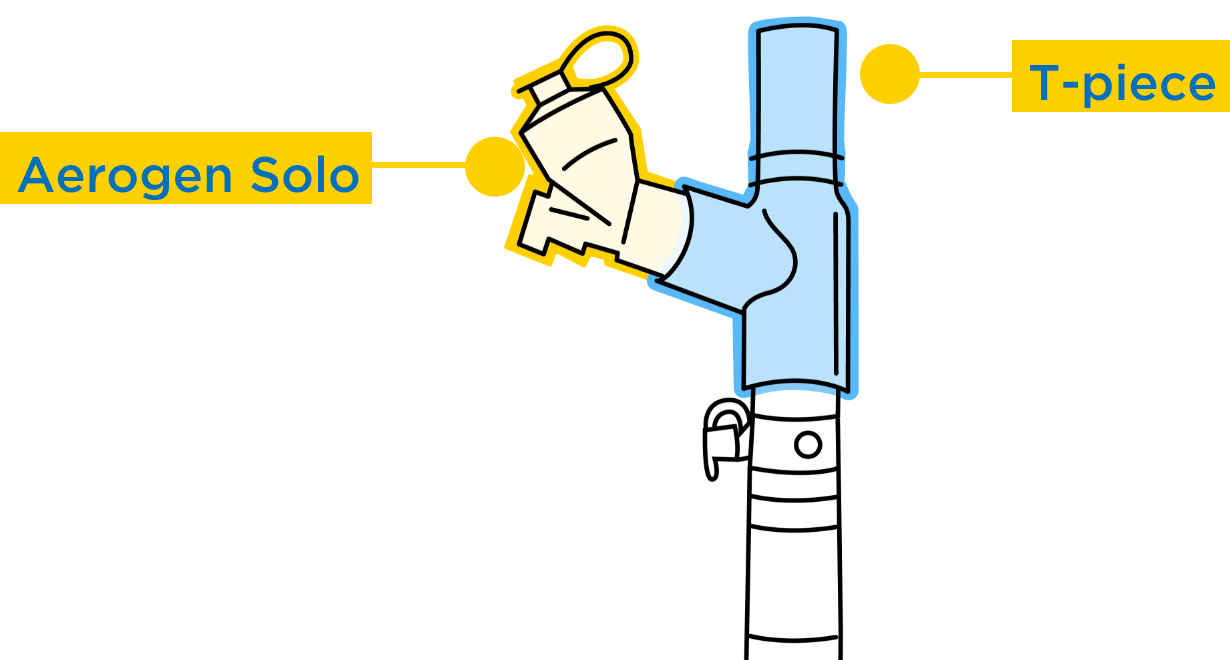

Place the Aerogen Solo firmly into the Aerogen T-piece

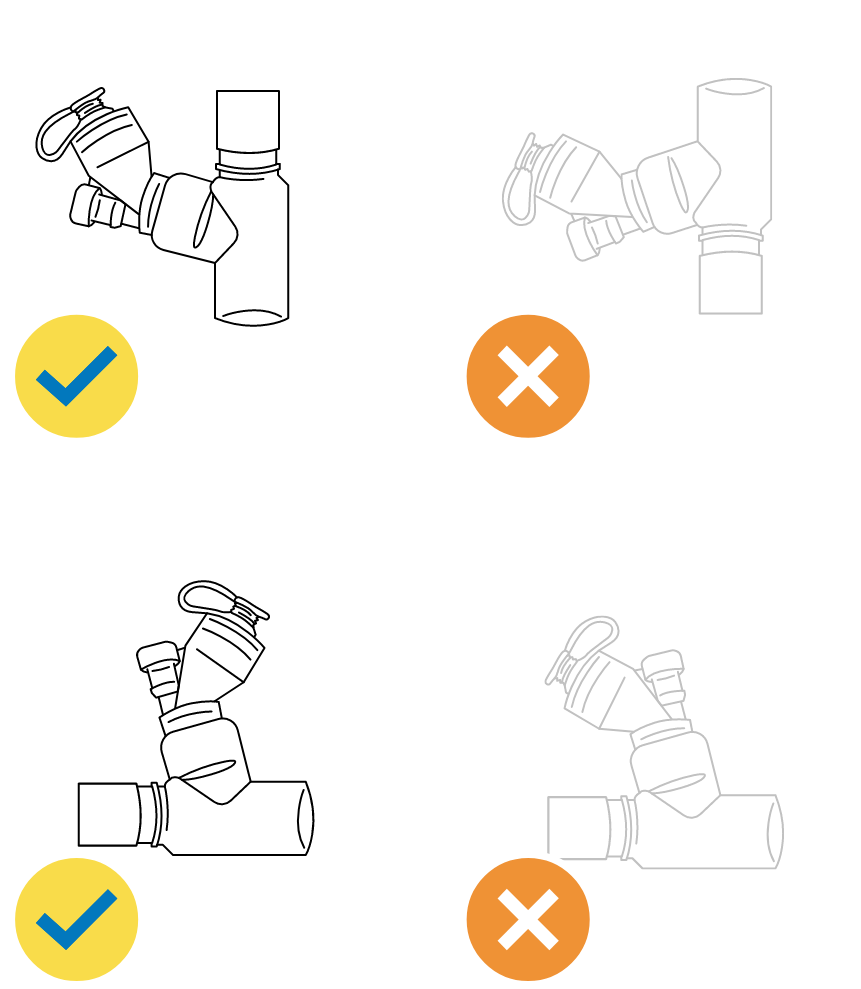

Ensure correct orientation of the device
STEP 2

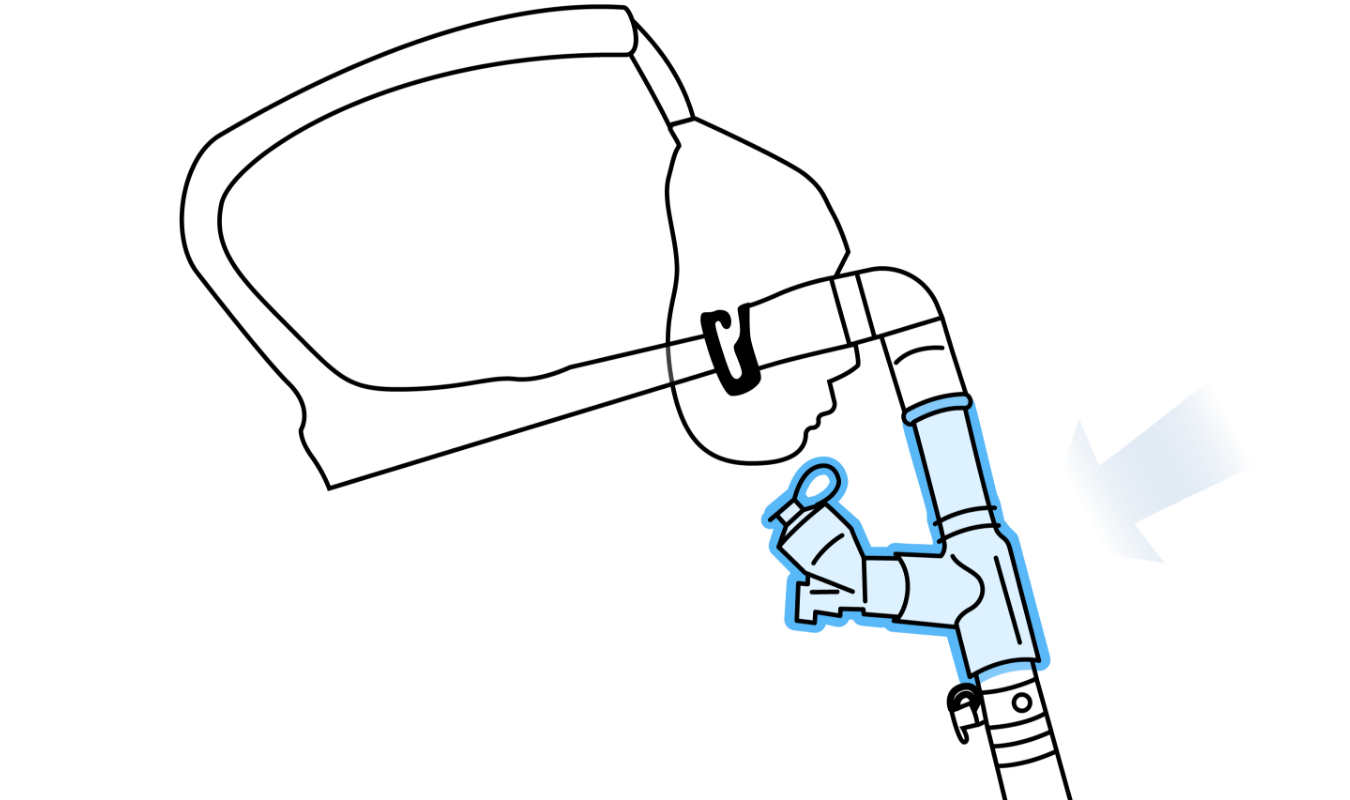

Insert the Aerogen Solo and the Aerogen T-piece between the mask and the exhalation port* of the single limb NIV circuit using a non-vented mask
*Leak port or exhalation Valve.
STEP 3

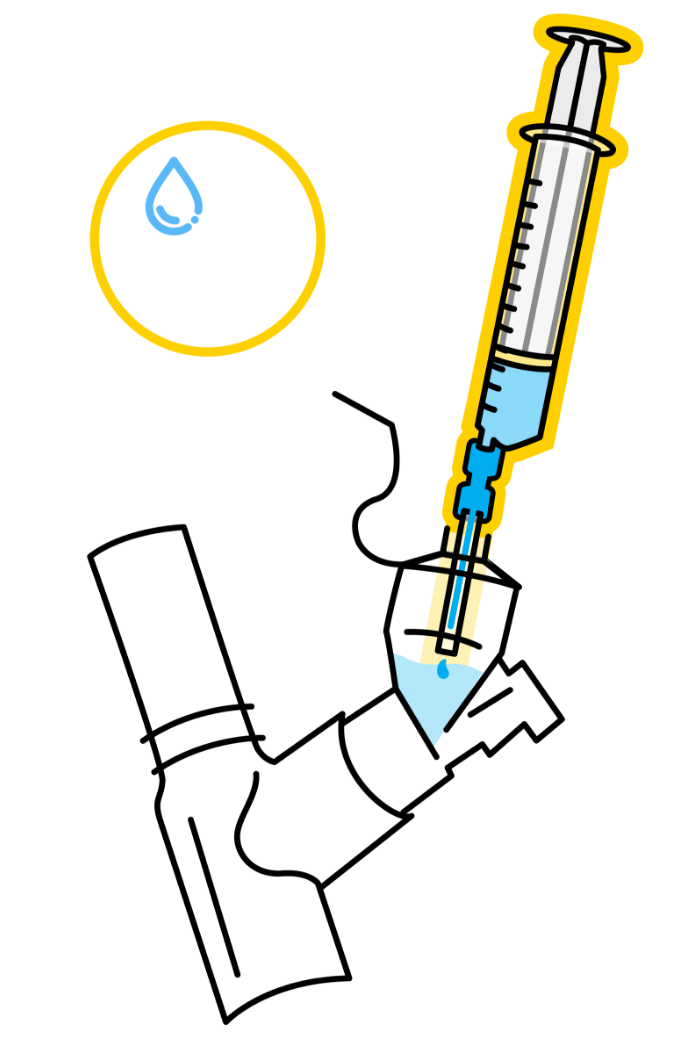

Insert medication into the Aerogen Solo
STEP 4

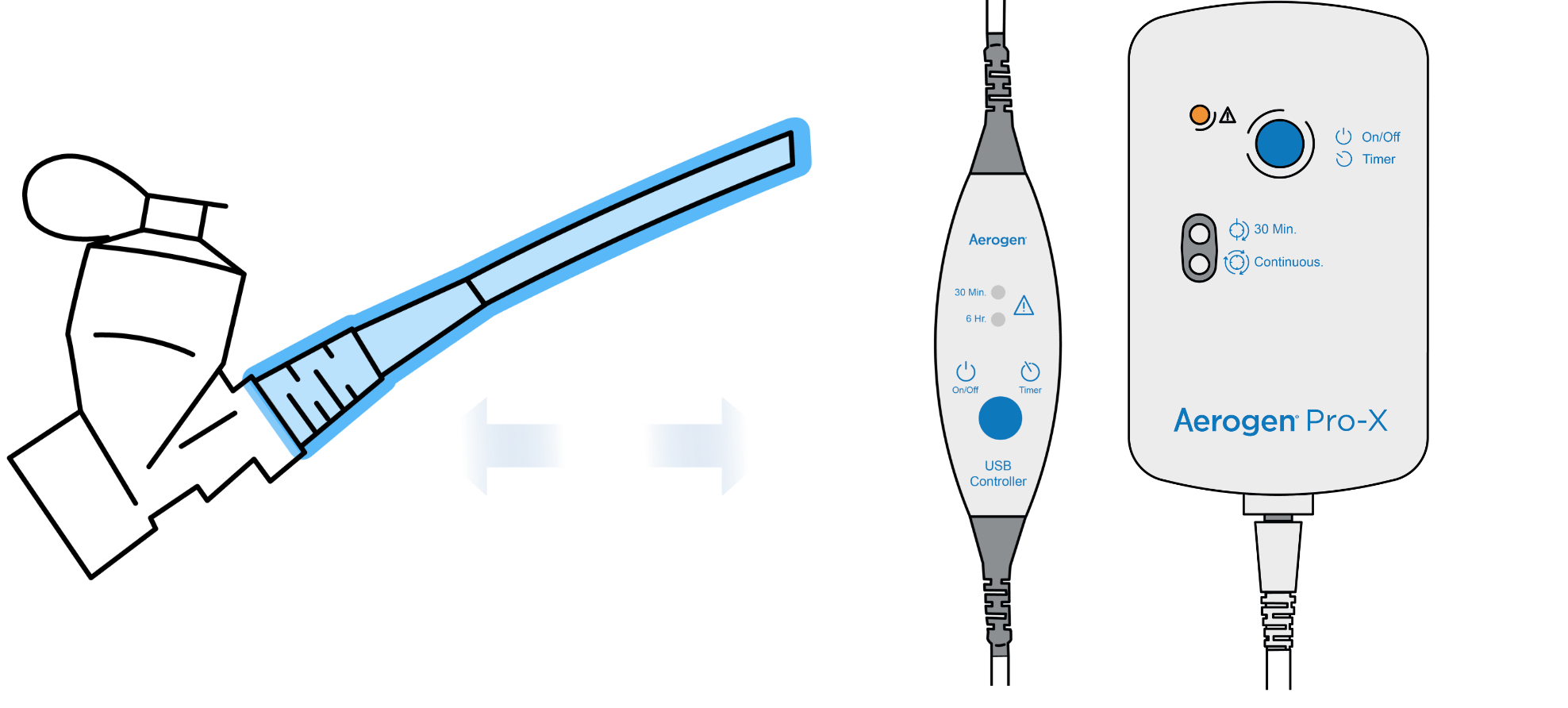

Connect the Aerogen Controller Cable to the Aerogen Solo and the Aerogen Pro-X/USB Controller
STEP 5

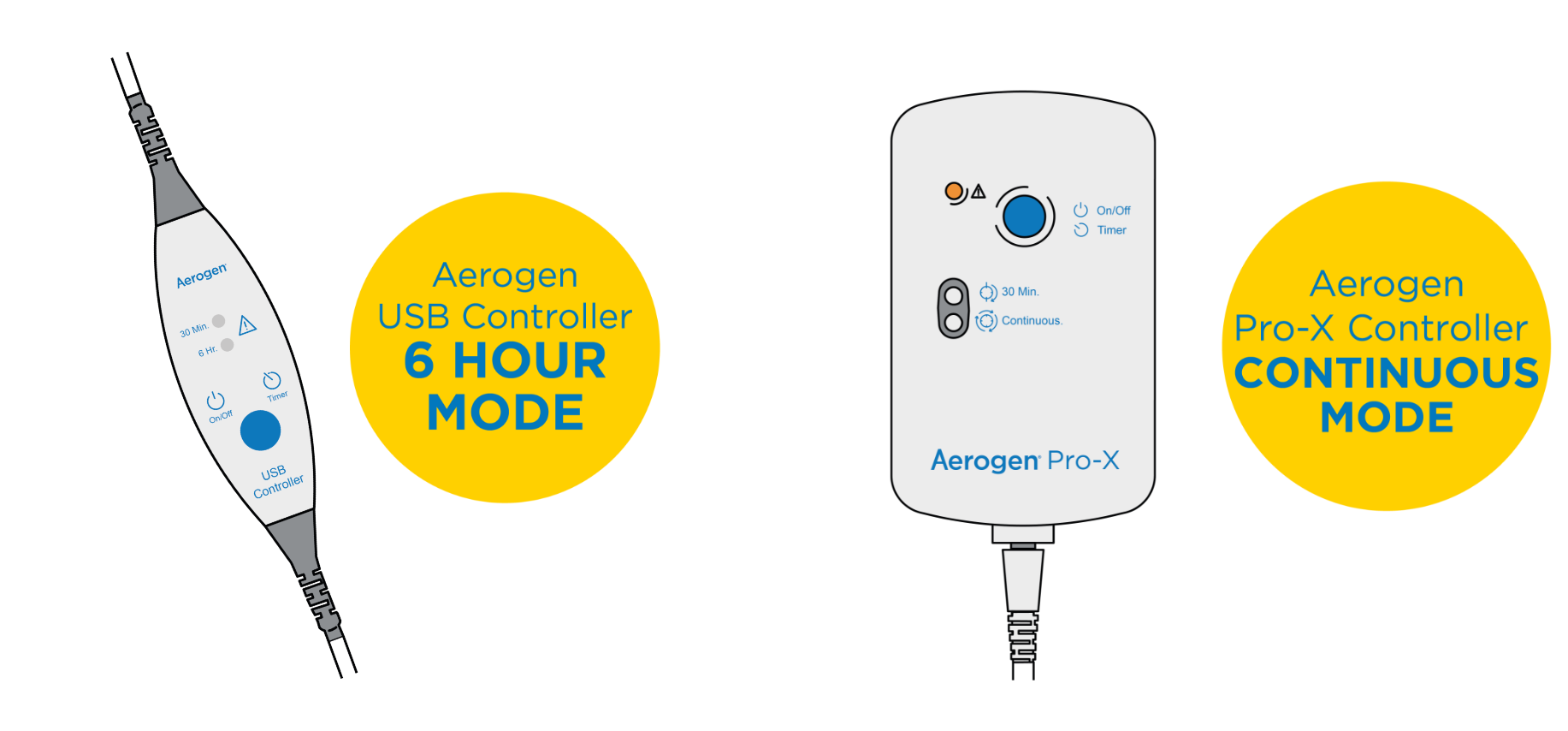

Press and hold the on/off button from the off position for
1 SECOND

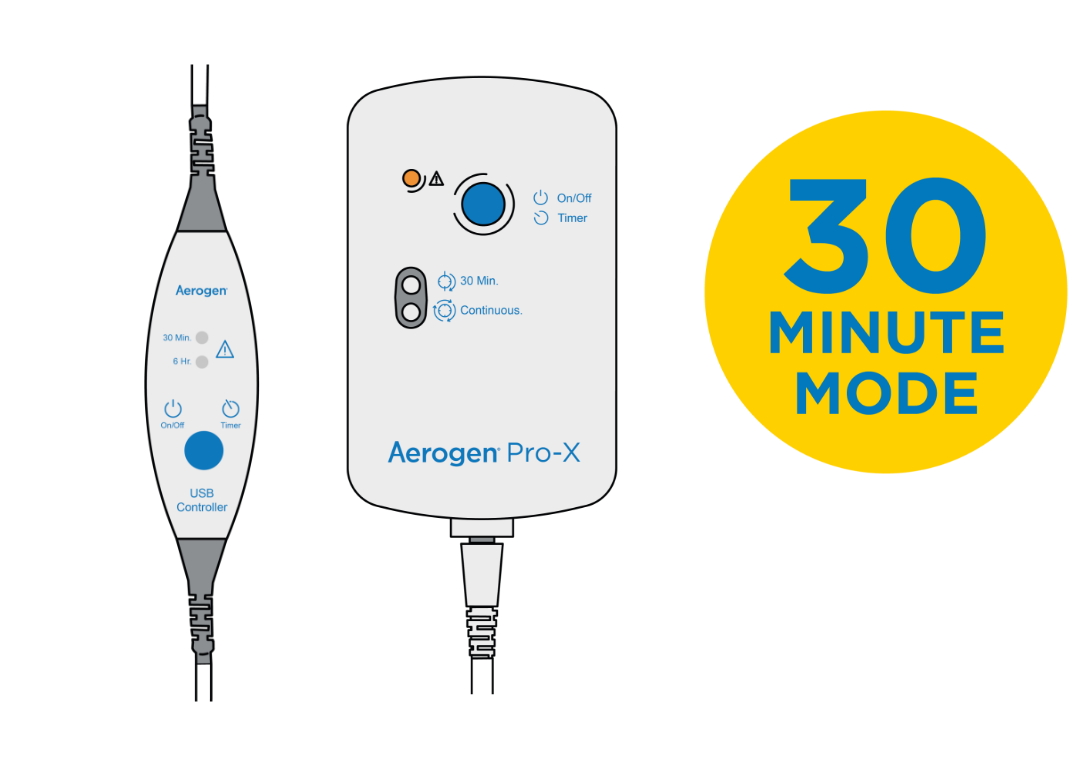

Press and hold the on/off button from the off position for
3 SECONDS
Section Five | Product set up for NIV
