Aerogen Approved
NIV Configurations
NIV configurations for a non-vented mask and exhalation port (leak port or exhalation valve) approval only.1
No Aerogen Solo shown, photographs are for general guidance only.
Click on the yellow markers

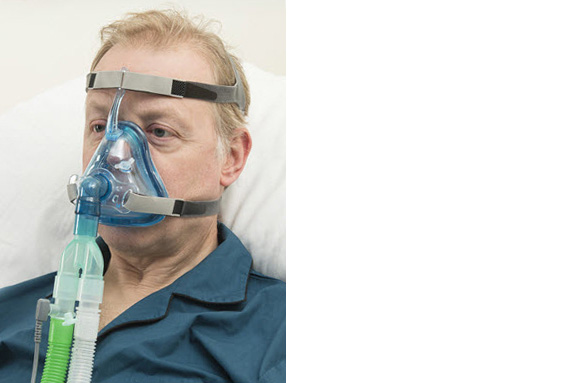

Dual-limb NIV circuit with a non-vented mask

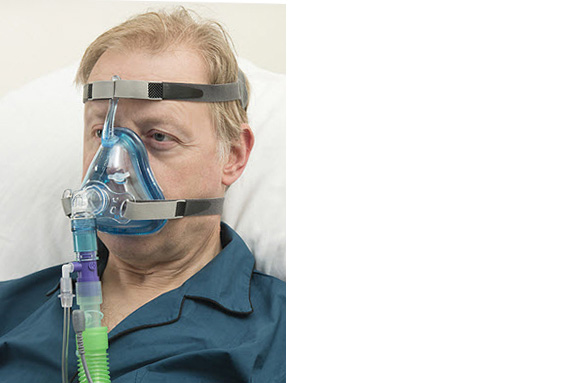

Single-limb circuit using a non-vented mask
- Leak port (passive)
- Exhalation valve (active)
- Leak port (passive)
- Exhalation valve (active)
Section Five | Product set up for NIV
